DETAILS
Productsion Specifications
| MODEL | SG-650 | |
| Printhead | I3200/4720 | |
| Number of printhead | 2 Heads | |
| Maximum print width | 600mm | |
| Print Speed (m2/h) | Print mode | Output(m2/h) |
| Quality6Pass | 8-12 m2/H | |
| High Quality8Pass | 8-10 m2/H | |
| Ink | Type: | Water Based Pigment Ink |
| Color : | 5 Color (C,M,Y,K +White) | |
| Capacity: | 1.5L per Main Tank of Each Color | |
| Ink Supply System | Circulating Ink Supply System | |
| Media Width | Maximum 650mm | |
| Media Type | Special PET film |
| Suitable for material | Cotton ,polyester ,canvas ,leather ,PU,denim ,Bags&luggage and so on … |
| Auto Media Feeding System | Automatic Retractable Film System |

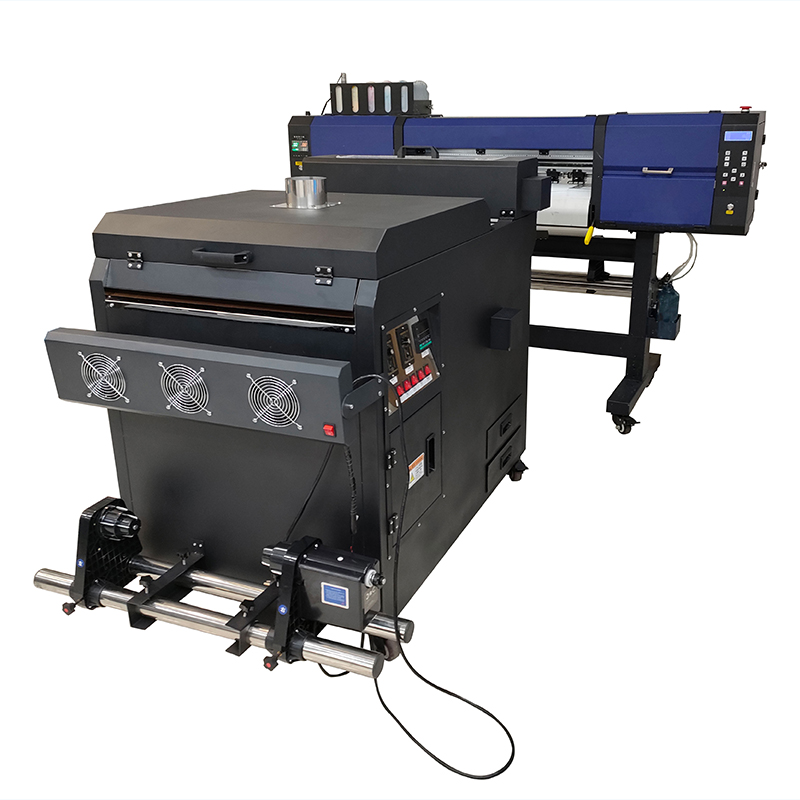

| Pre-heating & Drying System | Equipped(infrared drying for heating hopper powder in the front ,middle and back of the printer |
| Clamp | Equipped |
| Print Interface | USB 2.0 |
| Printhead Height | 0to 12 mm from Media |
| RIP Software | Maintop, PE ,Riprint RIP Software (Optional) |
| Input Power | AC 110V(+-10%)50/60HZ AC 220V(+-10%)50/60HZ |
| Machine Dimension / N.W | L1560 x W750 x H1,500mm / 140KG |
| Package Dimension / G.W | L1680 x W780 x H1500mm / 220KG |
Advantage:
1,Work with waterbased Pigment ink ,environment friendly-safe,non-toxic harmless
2, No plate,making and carving ,save time and suitable for different special request orders
3, vivid colors ,washable and durable ,wash 50 times in warm warm water still look great
2, No plate,making and carving ,save time and suitable for different special request orders
3, vivid colors ,washable and durable ,wash 50 times in warm warm water still look great
