DETAILS
Productsion Specifications

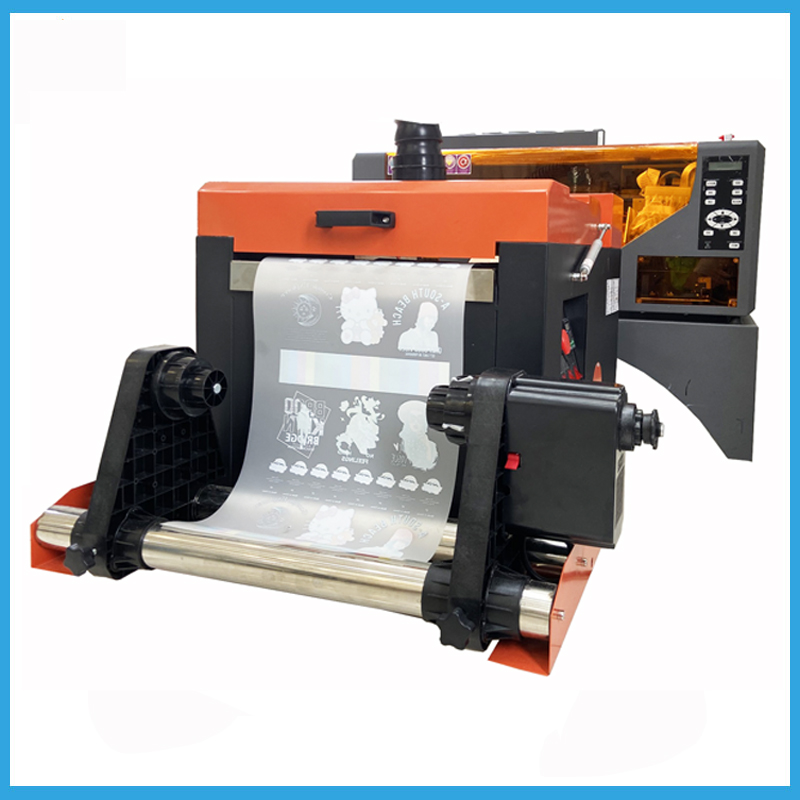

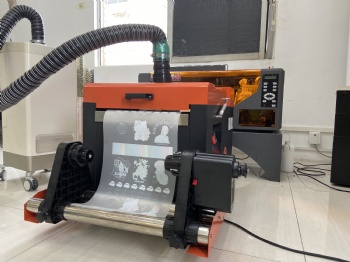

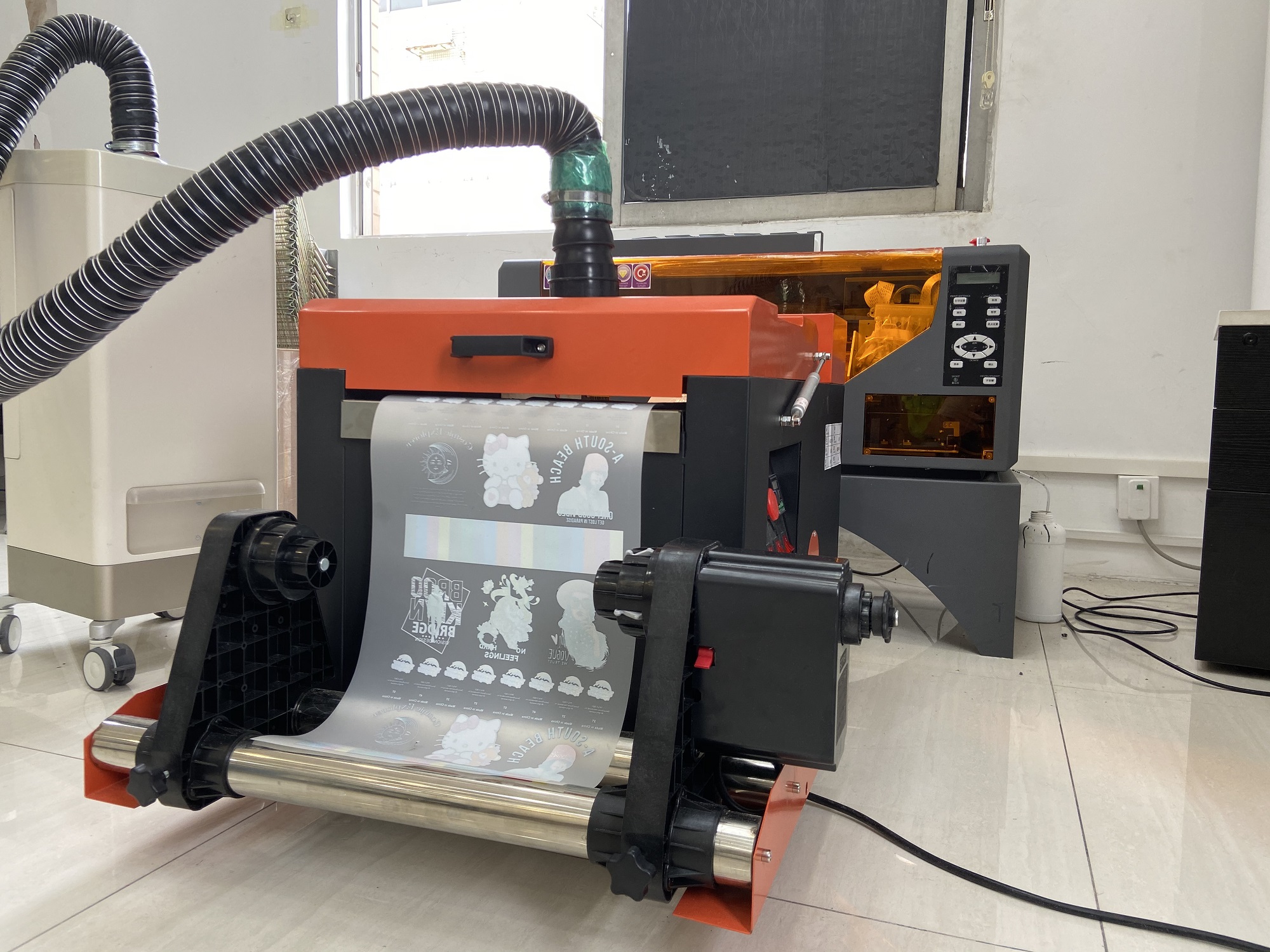

MODEL | A3 DTF (DIGITAL PET FILM )PRINTER | |
Printhead | XP-600 | |
Number of printhead | 2 Heads | |
Maximum print width | Less 330mm | |
Print Speed (m2/h) | Print mode | Output(m2/h) |
| Quality4Pass | 2-5 m2/H | |
| High Quality 1440dpi6Pass | 2-3 m2/H | |
Ink | Type: | Water Based Pigment Ink |
Color : | 7 Color (C,M,Y,K,LC,LM +White) | |
Capacity: | 600ml per Main Tank of Each Color | |
Ink Supply System | Circulating Ink Supply System | |
Media Width | Maximum less 330mm | |
Media Type | Special heat transfer PET film | |
Suitable for material | Cotton ,polyester ,canvas ,leather ,PU,denim ,Bags&luggage and so on … | |
Auto Media Feeding System | Automatic Retractable Film System | |
Drying System | Equipped | |
White ink circulation stirring | Equipped | |
Working environment | Temperature 15-35℃, Humidity：40%-60% | |
Operation system | XP/Win7/Win10 | |
Printing interface | Usb / 1000BaseTx | |
RIP Software | Maintop V6.1PS , | |
Power | 500W | |
Machine Dimension / N.W | 0.95*0.63*0.58/ 27KG(POWDER SHAKER) , 1*0.46*0.43M/70KG(PRINTER) | |
Package Dimension / G.W | 0.99*0.68*0.74 / 43KG(POWDER SHAKER) , 1.06*0.8*0.6M/90KG(PRINTER) |
